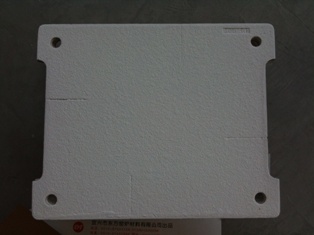

Performance:The oxide-bonded silicon carbide plate has the excellent physical performance, such as great thermal shock stability, good thermal conductivity, not easy to crack and deformation under high temperature operation. Coated with the alumina paint, the sic plate has better oxidation resistance performance. In normal oxidizing and reducing atmosphere, the turnover rate of the sic plate can be up to 600-1200 times or more. The sic plate is widely used in the industries of ceramics, sanitary and glass chemicals and apply to a variety of types of furnaces, such as shuttle kiln, tunnel kiln, roller kiln and pushing plate kiln.
Regular Size(mm) :
L X W | L X W | L X W | L X W |
760x500 | 680x460 | 560x380 | 495x380 |
760x520 | 680x420 | 550x550 | 450x400 |
760x500 | 650x400 | 550x480 | 420x450 |
740x520 | 640x480 | 550x450 | 400x330 |
700x550 | 640x400 | 550x400 | 400x300 |
700x520 | 630x400 | 550x340 | 380x320 |
700x500 | 605x310 | 530x530 | 380x130 |
700x450 | 600x640 | 530x500 | 370x550 |
700x400 | 600x520 | 500x520 | 60x520 |
Thickness 8-25mm | Special sizes can be made according to customers’ requirement. |
Chemical and physical index:
Chemical composition | Index | Physical specification | Index |
Sic | >93% | Bulk Density(g/cm3) | 2.72-2.8 |
Apparent Porosity (%) | 8-10 | ||
Refractoriness Under Load(T2℃) (2kg/cm2) | ≥1750℃ | ||
Refractoriness | >1850℃ | ||
Flatness Tolerance | 0.5mm | ||
Modulus of Rupture at 1400℃(MPa) | ≥60 | ||
Modulus of Rupture at RT(MPa) | ≥55 | ||
Crashing Strength at RT(MPa) | ≥150 | ||
Thermal Expansion at 1000℃(10-6K-1) | 4.8 | ||
Thermal Conductivity at 1000℃(W/mK) | 16 | ||
Max Service Temperature | 1400℃ |
Warranty/Regular Visits:
1, According to our company’s operating requirements, we will take complete responsibility for product quality issues in product warranty period to put an end to the customer’s worries.
2, Our company will offer the caution on the product operation to the customer, and routinely dispatch professional and technical personnel to visit customers for the purpose of knowing their opinions about product usage and improving product life.
